用途及特點:
本機床採用新型的頂彎模具和自動支撐輪等機構, 集項彎工藝、旋彎工藝於一身, 旣可完成頂彎工藝, 裝上旋彎機頭又可完成旋彎工藝, 擴大了使用範圍。 該設備採用全液壓傳動, 能自動控制彎曲角度, 自動或點動操作均可, 旣可加工小彎曲半徑, 厚壁或薄壁鋼管的角彎, 又能加工U型彎、盤管彎、抱彎、銅、鋁母排的正、側彎。
利用本機器彎製的管子不起折皺、橢園率小, 質量優於國家標準。 工作效率高, 暢銷全國, 遠銷三十個國家和地區。 本機有三項專利權。
Function and Characteristics:
This machine has adopted a new type pressure-bending form and automatic
supporting wheel combining pressure bending and rotary angle bending processes.
It can make not only pressure bending but also rotary angle bending head. Thus it’s
use is widened. The machine is of fully hydraulic transmission, angle control.
It is easy to operate and highly efficient. The machine can make steel only
angle bending for thick and thin-wall pipes with a small bean radius but also
U-bending Omega (Q) bending. O spiral bending, front and side bending of copper
and aluminum strip bars. Pipes bent by our bender bear no reeling the
elliptical of bent pipes is small and the quality is abele the standard of our
country. Therefore, the benders are widely sold at home and in more than thirty
countries and regions.
The bending machine has won three patents.
主要技術參數
SPECIFICATION:
|

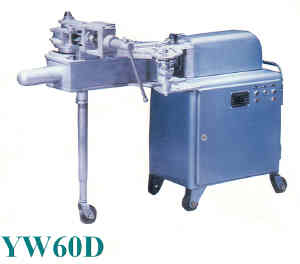

型號 Model:
|
YW60D
|
|
最大彎管直徑
Max. diameter of bend pipe (mm)
|
60 x 3
|
|
最小彎管直徑
Min. diameter of bend pipe (mm)
|
13 x 12
|
|
最大彎曲半徑 Max.
Bending Radius (mm)
|
400
|
|
最小彎曲半徑 Min. Bending Radius (mm)
|
45
|
|
最大彎曲角度 Max. Bending Angle
|
0 -180°
|
|
電動機 Motor (kw)
|
2.2
|
|
重量 Weight (kg)
|
370
|
|
外形尺寸 Overall
Dimensions (LxWxH) mm
|
1580x800x1050
|
注:
1.
彎曲銅、鋁母排正、側彎: 寬40-100mm, 厚4-10mm
2.
以上彎管機均采用無芯彎曲, 彎管的相對壁厚為: 壁厚/管外徑>0.08, 彎曲半徑不小於管外徑的3倍。
3.
如有超範圍特殊彎管模, 需采用有芯彎曲面議。
Note:
a)
Front and side bending of
copper and aluminum strip bars: Width 40-100mm,
thickness 4-10mm
b)
The pipe-bending machines
bend pipe without core. The relative thickness of pipe wall to outer diameter
is not lower than 0.08. Bending radius is not smaller than three times of the
diameter.
c)
If there are some special
bend pipes and bending by core is required. We shall discuss it face to face.
